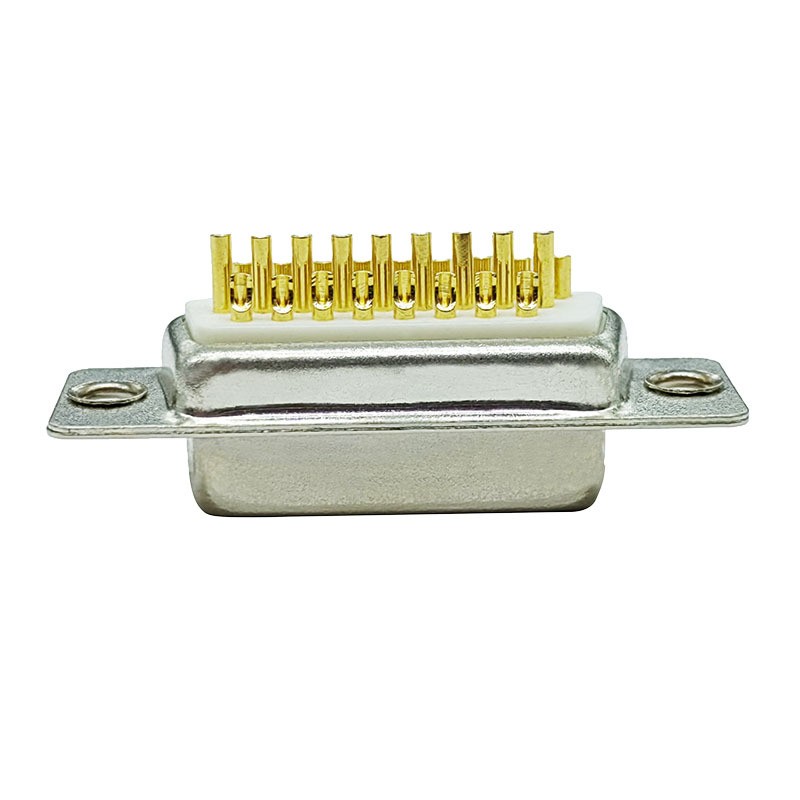

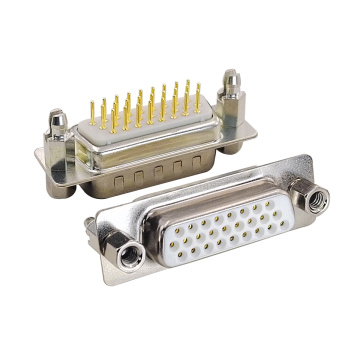

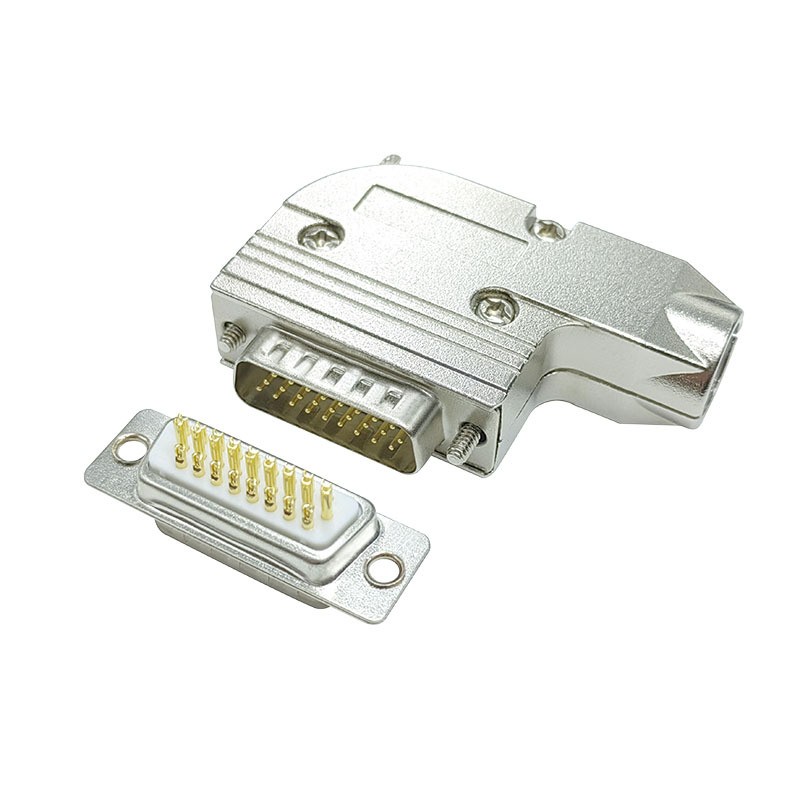

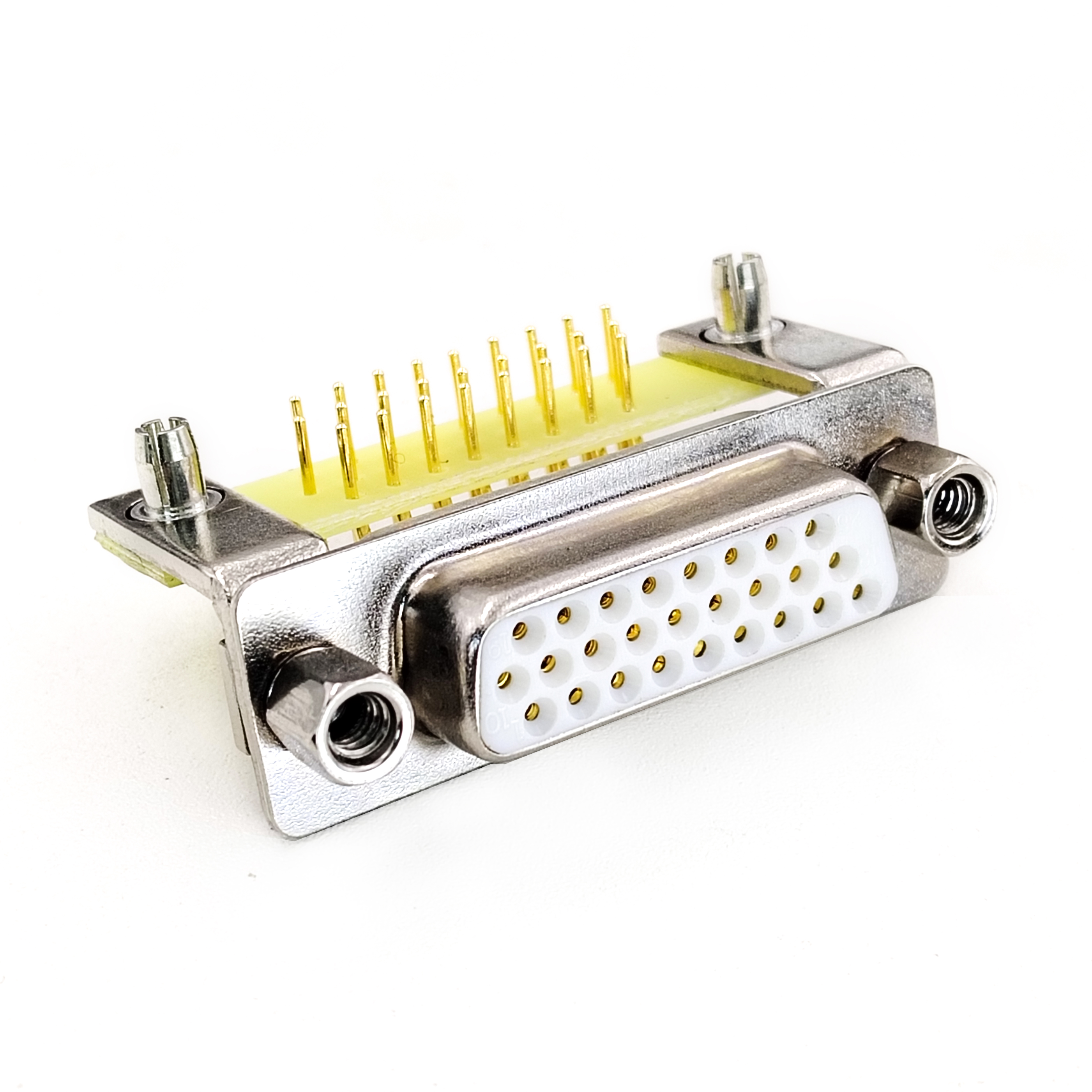

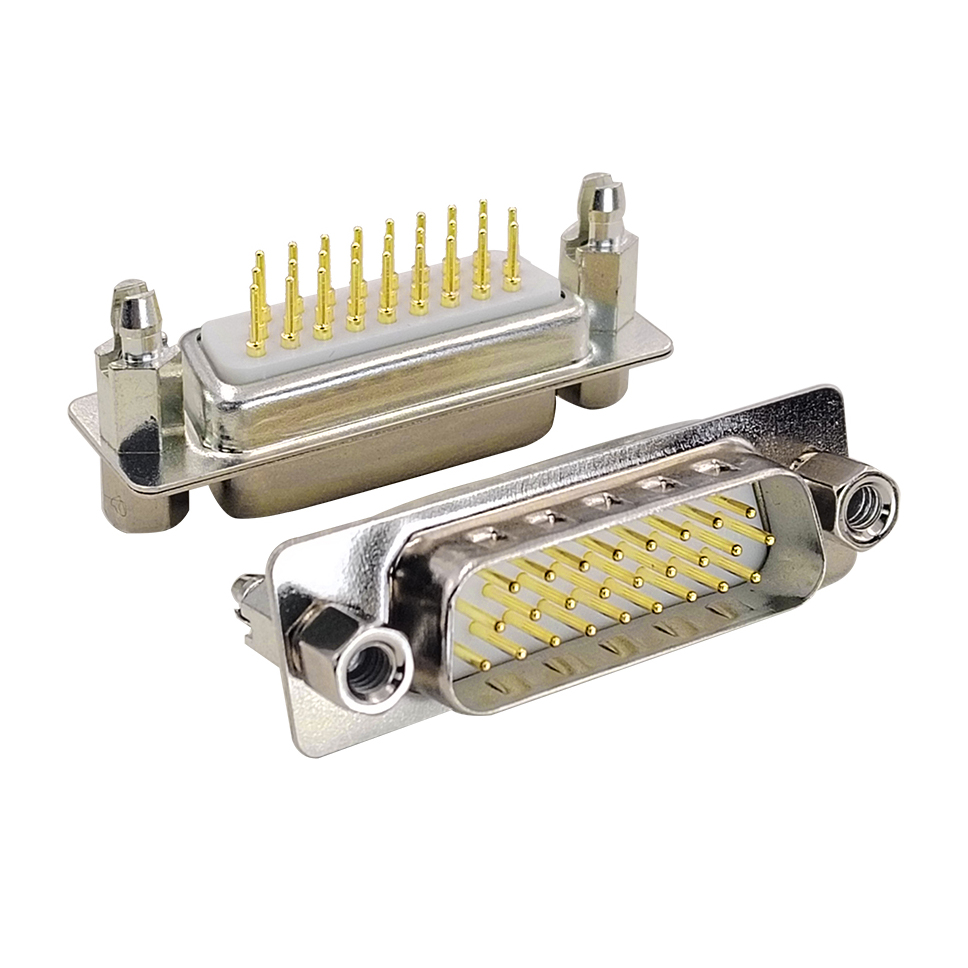

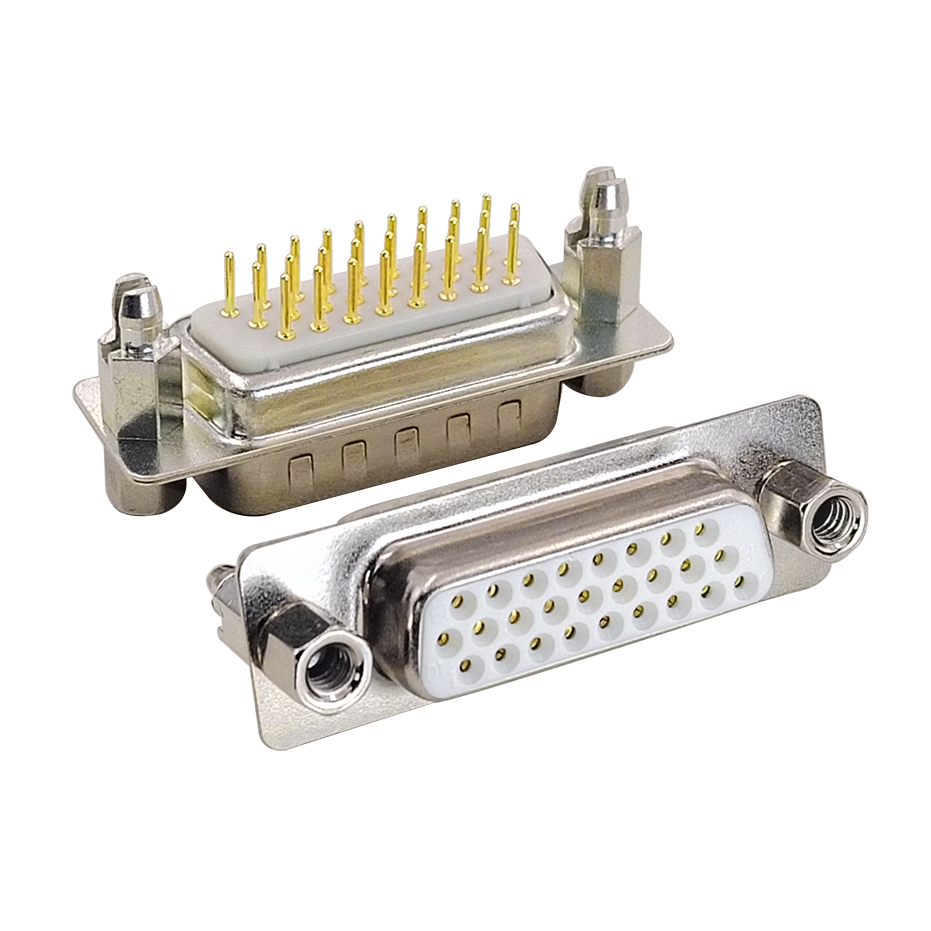

26-Pin D-Sub Connector: A Precision Expert in High-Density Signal Transmission Within the D-Sub connector family, the 26-Pin D-Sub (often referred to as HDB26) is a "precision expert" pursuing ultimate space utilization. Unlike the standard D-Sub we commonly see, it belongs to the High Density series, designed specifically to transmit more signals within a limited space. Precision Appearance and Physical Construction The most striking feature of the 26-Pin D-Sub is its internal pin arrangement. Breaking away from the standard D-Sub's (such as DB25) two-row layout, it employs a three-row pin design, compactly arranging 26 contacts within a standard-sized housing. To achieve this high-density layout, its pin pitch is significantly reduced to approximately 2.29mm (compared to approximately 2.76mm for standard D-Subs). This precise design not only effectively reduces the overall size of the connector but also significantly increases the signal transmission density per unit area. Like other members of its family, it retains the iconic "D"-shaped metal casing and screw-locking structure on both sides, ensuring a stable, foolproof, and vibration-resistant connection even in confined spaces. Core Identity: Industrial Automation and Signal Transmission. While 26-pin is not a standard feature of traditional PC peripherals (such as serial, parallel, or VGA ports), it holds an irreplaceable position in industrial automation and professional equipment. Industrial Signal Transmission and Terminal Modules: In modern industrial control cabinets, 26-pin D-Sub is often used as a high-density signal transmission interface. Many professional interface modules are equipped with 26-pin high-density D-Sub interfaces for quickly and neatly transferring signals from PLCs (Programmable Logic Controllers) or data acquisition cards to field sensors, actuators, or terminal blocks. Customized Equipment Communication: Inside professional equipment such as CNC machine tools, medical instruments, and communication base stations, engineers often need to transmit multiple control signals or status feedback. With its abundant pin count and compact size, the 26-pin D-Sub connector has become an ideal choice for customized board-to-board and board-to-wire connections. Stable transmission in harsh environments: Thanks to its robust metal shielding shell, the industrial-grade HDB26 connector effectively resists complex electromagnetic interference (EMI). Some high-end models even have IP67/IP68 waterproof and dustproof capabilities, perfectly adapting to harsh environments such as outdoor and rail transportation. Common variations and connection methods: To adapt to diverse industrial cabling needs, the 26-pin D-Sub has also spawned a wide variety of forms: Mounting types: In addition to the standard models for cable connections, there are through-hole soldering types (straight pins or 90° bent pins) designed specifically for PCB circuit boards, facilitating direct mounting to control motherboards. Connection processes: At the cable end, in addition to traditional soldering, crimping and IDC piercing connections are widely used, allowing for quick assembly with flat ribbon cables, greatly improving industrial production efficiency. Protection rating: In addition to standard industrial-grade products, there are also sealed HDB26 connectors with high protection ratings, designed specifically for extreme conditions such as humidity and dust. From precision industrial signal switching to the internal control of complex equipment, the 26-pin D-Sub connector plays an indispensable "unsung hero" role in modern electronic engineering, thanks to its high-density three-row pin design and robust industrial-grade reliability.
